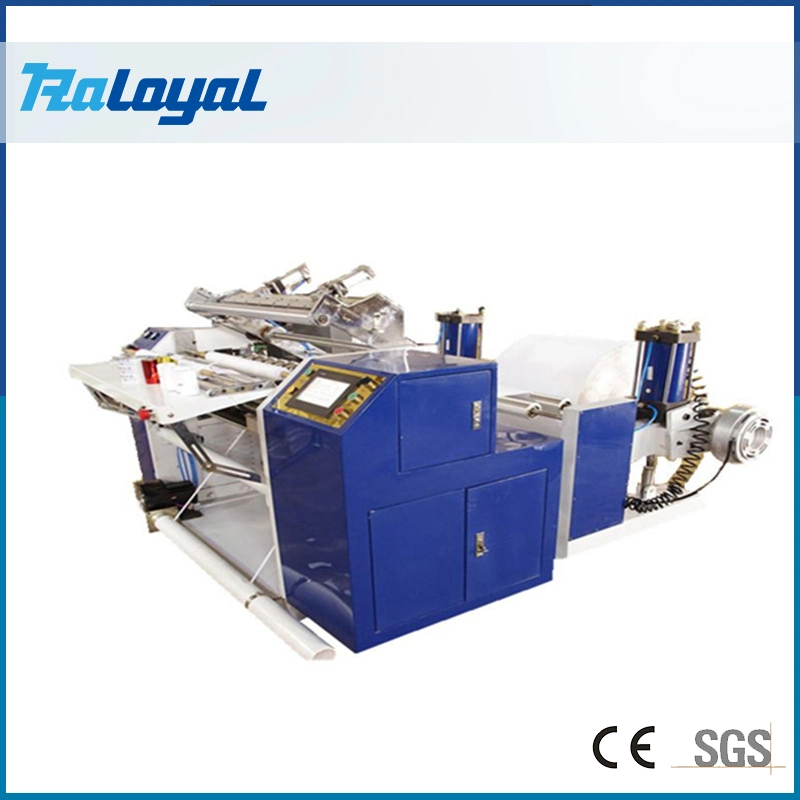

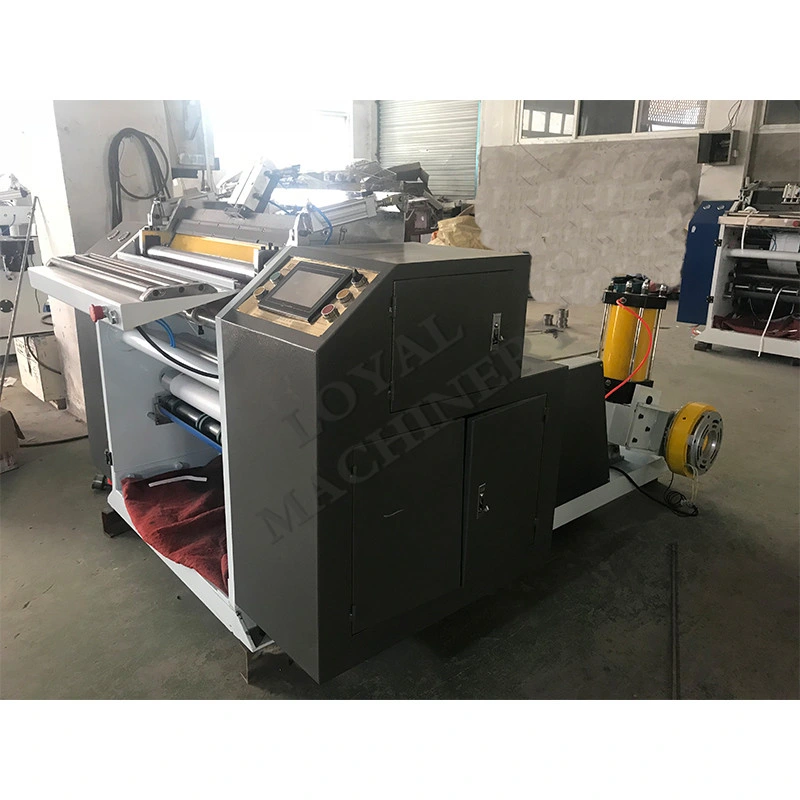

Medical Thermal Paper for EEG/CTG/ ECG Roll Slitting Machine

Video
https://youtu.be/TcCXZWH2ZcU

Technical parameter

ModelHC-T500HC-T700HC-T900HC-T1100
Unwinding width500mm700mm900mm1100mm
Standard slitting width30~500mm30~700mm30~900mm30~1100mm
Slitting speed168m/min 168m/min 168m/min  168m/min
Unwinding diameterΦ700mmΦ800mmΦ1000mmΦ1000mm
Rewinding diameterΦ160mmΦ160mmΦ200mmΦ200mm
Reel paper core inner diameter0.5~3inch0.5~3inch0.5~3inch0.5~3inch
Total powerAbout 3.5kwAbout 3.5kwAbout 3.5kwAbout 3.5kw
Machine weightAbout 1200kgAbout 1400kgAbout 1500kgAbout 1600kg
Machine overall dimension2100*1500*1500mm2400*1600*1500mm2400*1800*1500mm2400*2000*1500mm

Use

It is mainly suitable for slitting all kinds of thermal paper, fax paper, cash register, computer bill, medical record paper, pos printing paper, ATM reel paper, film and self adhesive paper etc.


Characteristic

it is adopt the surface rewinding way, automatic replicate, insert reel. The electric part adopt the most advanced PLC controller. All of the program are set by the touch screen(PLC). Unwinding is used to automatic loading system, the tension force is controlled by the Programmable Logic Controller.
