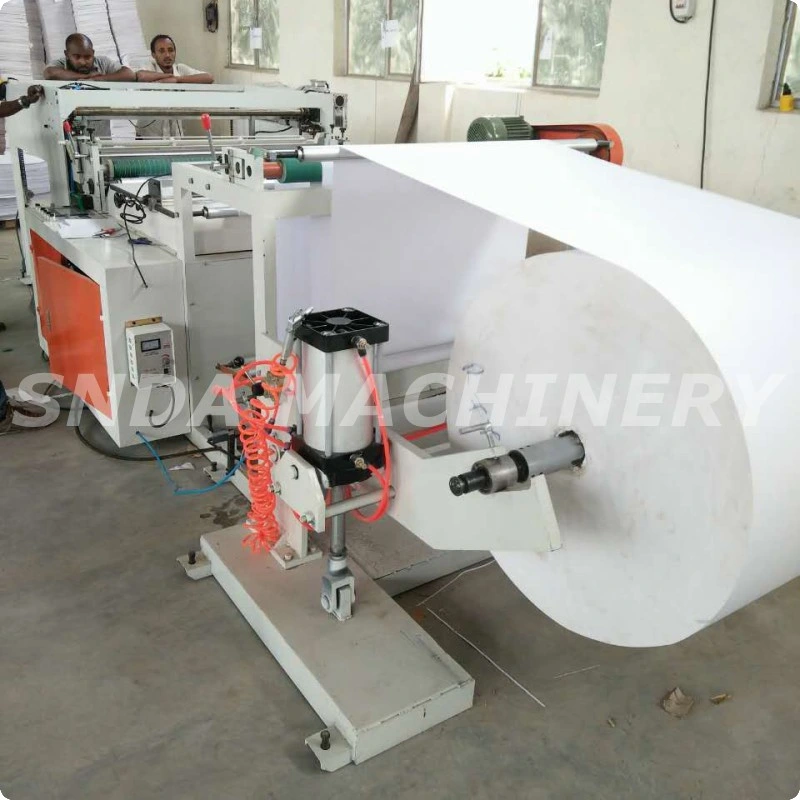

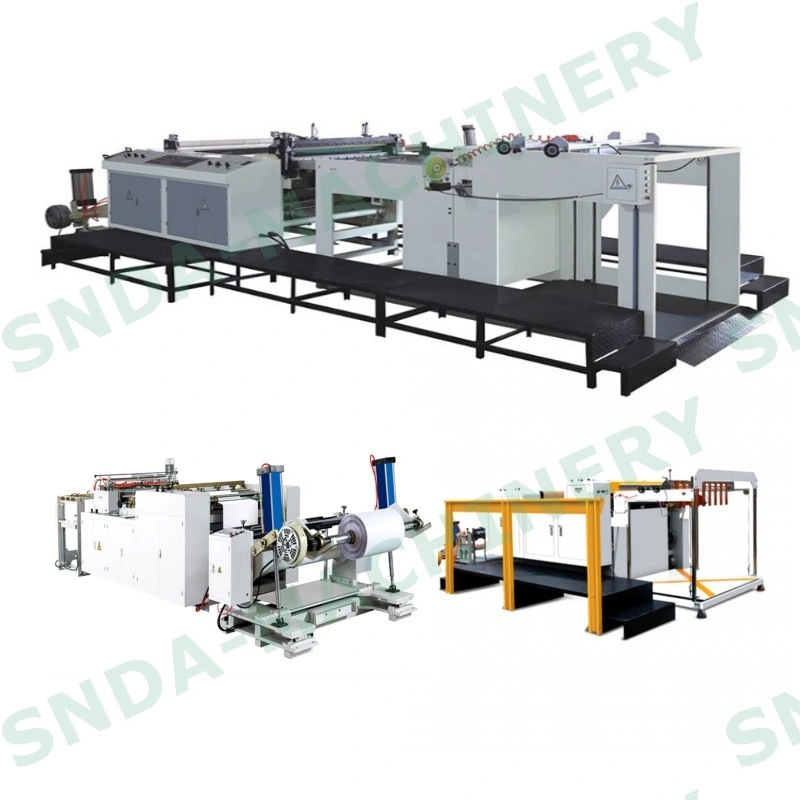

Paper sheet cutting machine with auto stacker

Performance
This Paper sheet cutting machine(auto stacking)(paper sheeting machine, paper sheeter,paper roll to sheet cutting machine )is suitable for cutting rolling materials such as, chrome paper, coated paper and kraft paper, etc. It's much more suitable for production of paper making and paper process industry. Adopts pneumatic automatic materials-in system with much easy operation and convenience. Adopts imported heavy vertical type cutters with orderly finished products.It has automatic lifting device on the unwinding unit and automatic stacking table for finished product collecting.

Main Technical Parameters
ModelHQ-1100DHQ-1300D
Max cutting width1100mm1300mm
Max diameter of unwindingΦ1400mmΦ1400mm
Cutting length200-1200mm200-1200mm
Cutting speed60m/min60m/min
Cutting precision±0.2mm±0.2mm
Range of raw material thickness100-500g100-500g
Height of stackingMax.1200mmMax.1200mm
Total power7.5kw8.5kw
Weight (approx. )2500kg2800kg
Overall dimension(LxWxH)5400×2100×1300mm5400×2300×1300mm

Characteristics:
It adopts servo motor for controlling constant-length cutting;
It adopts PLC control,touch screen operation;
It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the function of easy operation, high precision, good stability, low noise;
This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm, magnetic powder tension control, can be vertically, adopt blower fan to get rid of waste;
It can be cut vertically, adopt blower fan to get rid of waste Hot oil heating roll.
