Application:

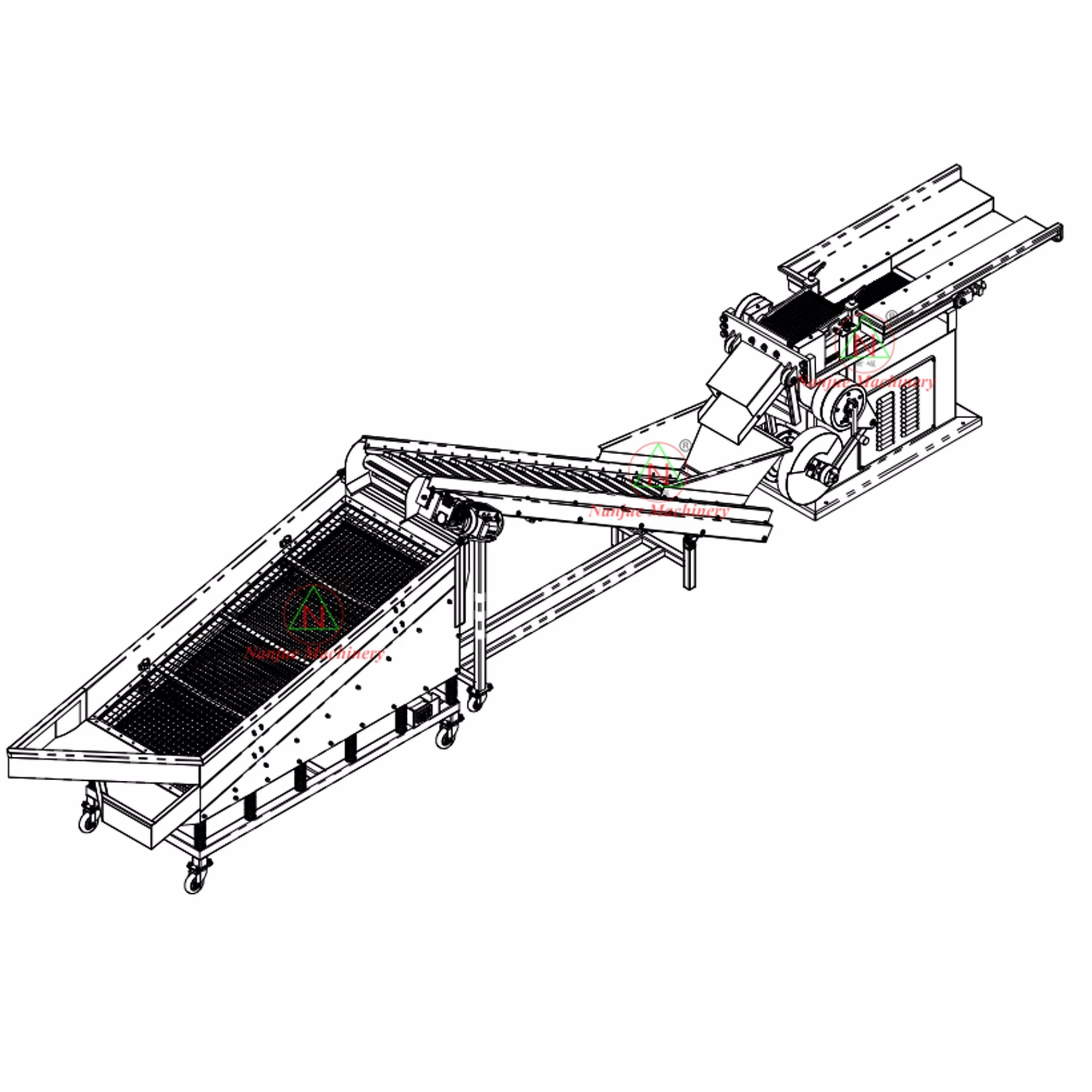

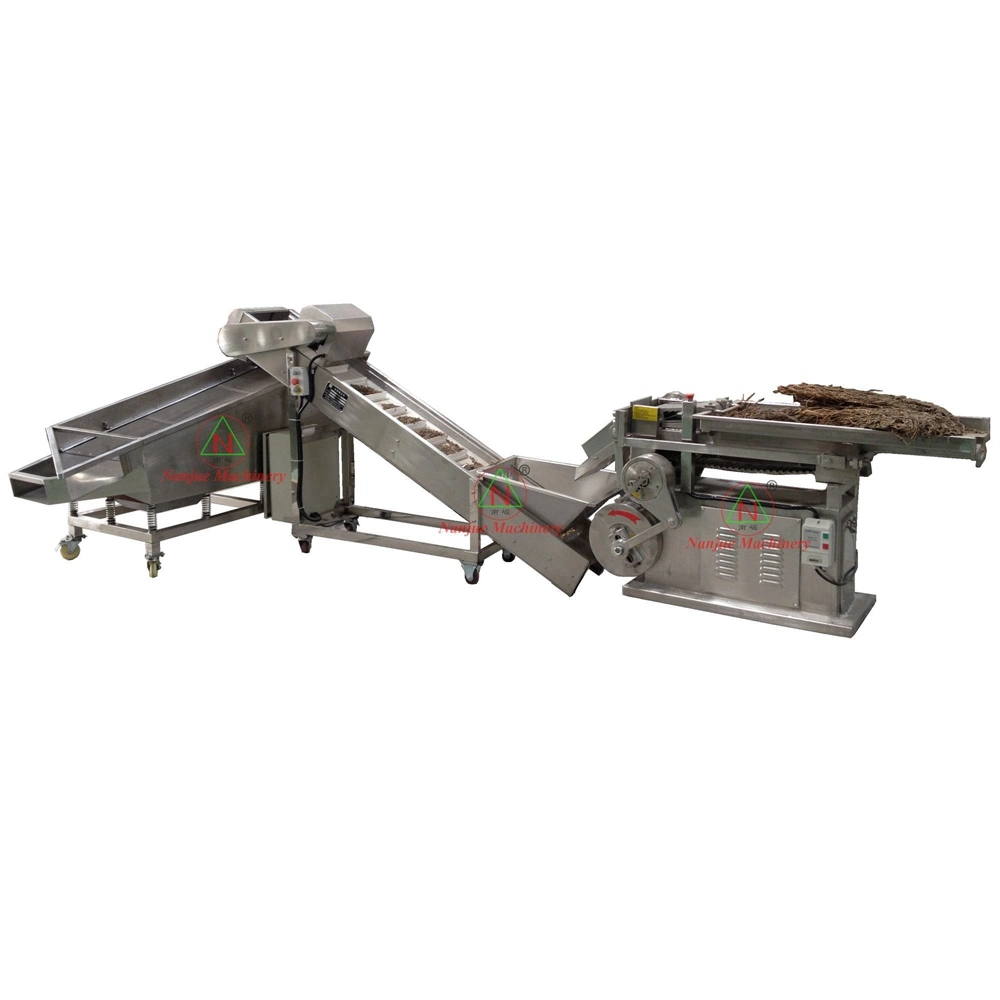

This herb cutting machine is used for cutting all kinds of soft & hard herbal leaf, roots, steam & vine. Such as herb leaf and root, licorice roots, tobaco leaves, kelp, astragalus membranaceus, scutellaria baicalensis and spices. The cutting machine can be connected with conveyor & a sieving machine, the sieving machine can seperate different size of slices into different levels.
Main Features
a ) The blades move from up to down by mechanical driver
b ) Using stainless steel convey chain to transport herbal materials to the knife and get fine slices.
c ) The design of machine is very scientific, the five-star pulley (clutch) was milled cut through computer, downs high precision & rational structure.
d ) The machine is made of stainless steel 304, including the convey chain, it's very strong & durable, hard to slip & low noise, easy to clean.
e ) Meet the requirements of CE & GMP
f ) Equipped with a emergency stop button.
Our Services
1.Warranty: 1 year warranty except man-made damage, if machine break down within one year, we supply the damaged parts free and technical supports.
Our customers will be fully trained for the operation and maintaining technology after the order confirmed.
24-hours full after sales , our skilled engineer will help customers to solve out the problem by what's app/ wechat / skype / QQ etc in time. If necessary, overseas service is avaliable.(Note: This machine easy to be operated , not easy to be break down, and we never get bad feedback on the working of this cutting machine)
2. Quality Control : Skilled and strict Quality Inspection Team during the materials purchasing & production procedure.
All finished machinery are 100% strictly tested by our QC & engineering department.
3. Professional sales will reply your inquiry within 12 hours and delivery your order within 15-20 working days.
4 . We have 9 years foreign trade experience and more than 16 years machine producing in this aera, our customers are from all over the world.
This herb cutting machine is used for cutting all kinds of soft & hard herbal leaf, roots, steam & vine. Such as herb leaf and root, licorice roots, tobaco leaves, kelp, astragalus membranaceus, scutellaria baicalensis and spices. The cutting machine can be connected with conveyor & a sieving machine, the sieving machine can seperate different size of slices into different levels.
| Technical specifications | ||
| Model | QYJ-200 | QYJ-300 |
| Capacity | 50-800Kg / h | 75-1200Kg / h |
| Cutting size/thickness | 0.4-25mm (adjustable) | 0.4-25mm (adjustable) |
| Power | 2.2Kw / 380V /3 phase/ 50Hz | 4Kw / 380V /3 phase/ 50Hz |
| Cutting speed | 357 times/min | 357 times/min |
| Rotary speed | 940 r/min | 960 r/min |
| Diamension / Size | 1780*780*980 mm | 1780*880*980 mm |
| Net Weight | 440 Kg | 500 Kg |
| Certificate | CE | CE |
| Technical specifications of Conveyor | |
| Model | SSJ-300 |
| belt width(mm) | 300 |
| belt length(mm) | 2000 |
| motor(mm) | 1.1 |
| remark: the conveyor can be made customized | |
| Technical Specificatin of sieving machine | |
| production capacity | 200-800 Kg/h |
| sieve specification | 10-140 mesh |
| power | 1.1 Kw |
| size | 2150*760*1250 mm |
| total weight | 200 Kg |
Main Features
a ) The blades move from up to down by mechanical driver
b ) Using stainless steel convey chain to transport herbal materials to the knife and get fine slices.
c ) The design of machine is very scientific, the five-star pulley (clutch) was milled cut through computer, downs high precision & rational structure.
d ) The machine is made of stainless steel 304, including the convey chain, it's very strong & durable, hard to slip & low noise, easy to clean.
e ) Meet the requirements of CE & GMP
f ) Equipped with a emergency stop button.
