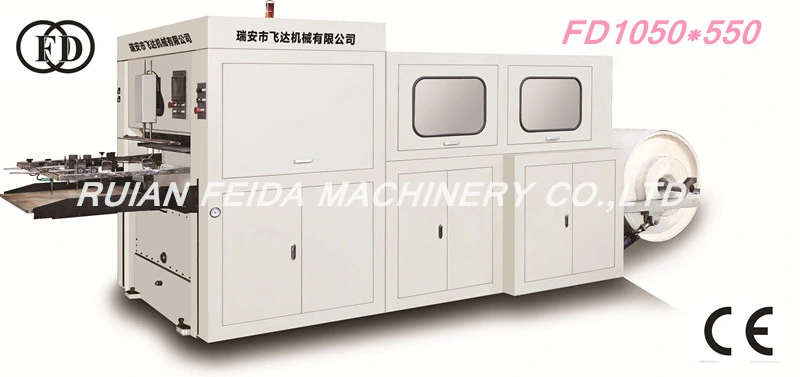

ROLL DIE CUTTING MACHINE
FD1050*550 MODLE
MAIN TECHNICAL PARAMETERS
CUTTING PRECISION: ±0.25MM
RATED CUTTING SPEED: 5000-65000PCS/HOUR
MAX CUTTING SPEED: 7800PCS/HOUR
MAX CUTTING PRESSURE: 150T
MAX CUTTING PAPER SIZE(W×L): 900MM*500MM(W×L)
MIN CUTTING PAPER SIZE(W×L) : 490MM*350MM (W×L)
APPLICABLE SCOPE OF THE PAPER : PAPER 130G-500G, ALL KINDS OF EMBOSSING PAPER, CORRUGATED PAPER
MOTOR TOTAL RATE: 14KW
MAIN MOTOR POWER: 7.5KW
OVERALL DIMENSIONS: 5M*2.3M*2.3M (L×W×H)
FD1050*550 MODLE
MAIN TECHNICAL PARAMETERS
CUTTING PRECISION: ±0.25MM
RATED CUTTING SPEED: 5000-65000PCS/HOUR
MAX CUTTING SPEED: 7800PCS/HOUR
MAX CUTTING PRESSURE: 150T
MAX CUTTING PAPER SIZE(W×L): 900MM*500MM(W×L)
MIN CUTTING PAPER SIZE(W×L) : 490MM*350MM (W×L)
APPLICABLE SCOPE OF THE PAPER : PAPER 130G-500G, ALL KINDS OF EMBOSSING PAPER, CORRUGATED PAPER
MOTOR TOTAL RATE: 14KW
MAIN MOTOR POWER: 7.5KW
OVERALL DIMENSIONS: 5M*2.3M*2.3M (L×W×H)
TOTAL WEIGHT: 5.0T
| FD930 ROLL DIE CUTTING MACHINE STRUCTURE DEVICE LIST: |
| NO. | COMMODIT | DESCRIPTION |
| 1 | HANDPIECE,5 COMPONENTS,CASTING PARTS | CROSSBEAM,LIFTING TABLE, THE MO |
| 2 | INTER-MACHINE TRANSMISSION DEVICE | WORM , GEAR WORM |
| 3 | CHOPPING BOARD | NO.65 MN STEEL |
| 4 | AUTOMATIC FORM RECEIVING TRAY |
| ELECTRIC CONFIGURATION LIST: |
| NO. | MOTOR MODEL | MANUFACTURERS |
| 1 | MAIN MOTOR Y132M-4 | LICHAO SHANGHAI |
| 2 | SERVO MOTOR 3.0 ACA61 | YASKAWA JAPAN |
| 3 | SENSOR(COLOR EYE) | SICK GERMANY |
| 4 | TOUCH SCREEN DOP-BO7S200 | WILEN |
| 5 | PLCDVP-16SP | TAIDA TAIWANG |
| 6 | TRACTION MOTOR ZF32-2.253 | ZHIBAO TAIWANG |
| 7 | TRANSDUCER 7SKWVFD-B/2.2WVFD-M | TAIDA TAIWANG |
| 8 | MAINFRAMEFLY WHEEL\AIR BRAKE\CLUTCH ODLZ-210/140 | |
| 9 | SWITCH | SCHNEIDER,OMRON |
